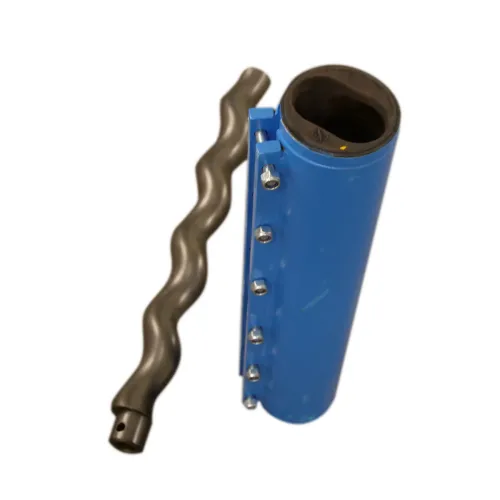

2L74 Stator and rotor

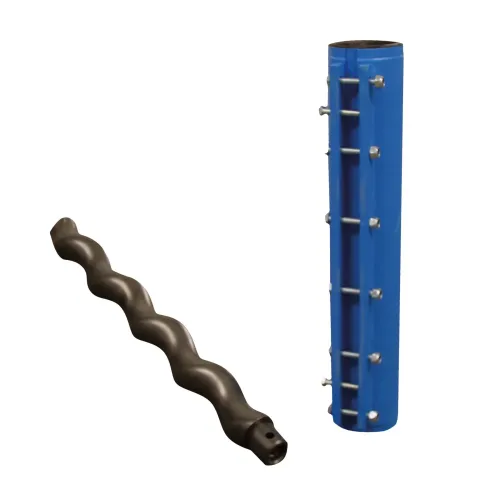

2L74 stator and rotor set for construction machines
2L74 stator liner for mortar and shotcrete machines

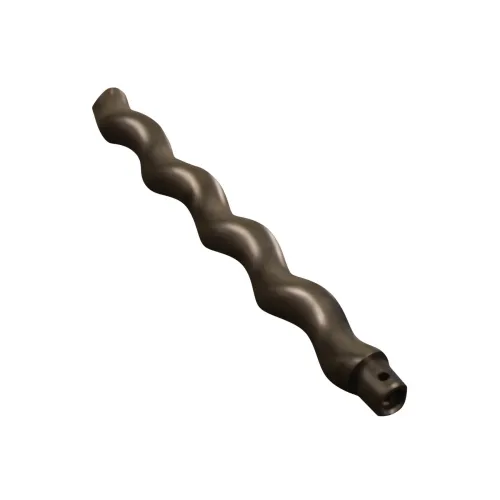

2L74 rotor for spraying and pumping machines
Stator and rotor model 2L74 for shotcrete and mortar equipment

Technical information of 2L74

. Brand: KTR
. Model: 2L74
. Applications: Self-leveling mortar
. For machines: Three-phase / Diesel
. Output: 153 L/min (approx.*)
. Maximum grain size: 8 mm
. Maximum pressure: 20 bar
. Stator diameter: 127 mm
. Stator length: 665 mm
. Stator type: Self-adjusting / With integrated clamp / With slots
. Rotor head type: With slot / with hole
. Weight: 10 kg

(*) Approximate output with water at 0 bar pressure.
