HOME / STATORS AND ROTORS / D5-2.5

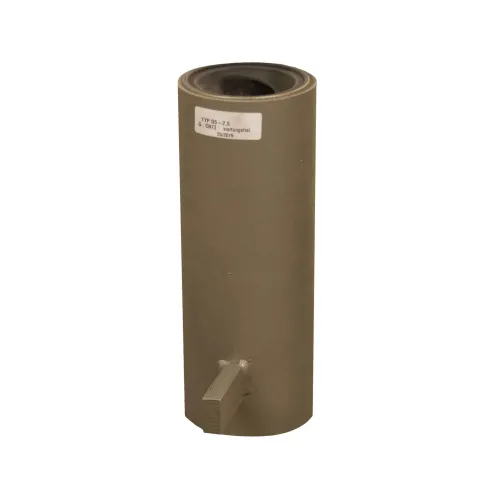

D5-2.5 Stator and rotor

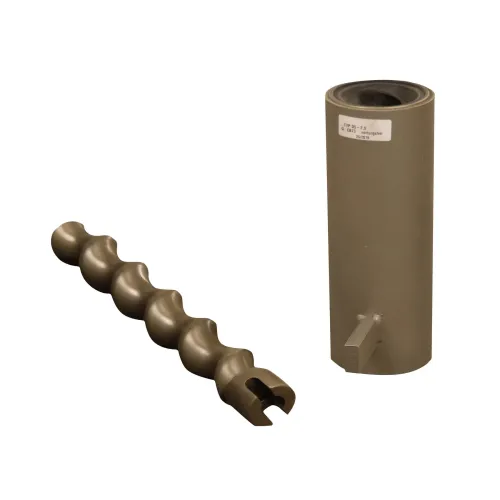

D5-2.5 stator and rotor set for construction machines

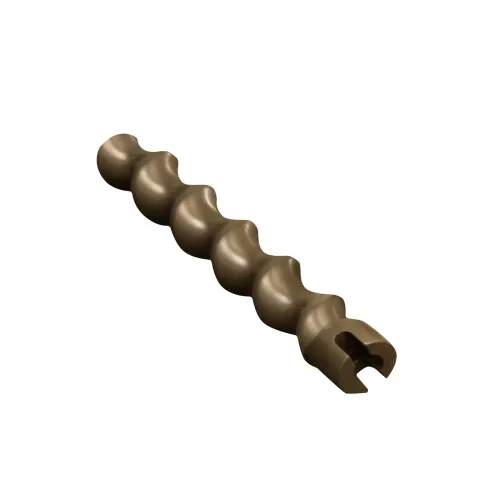

D5-2.5 rotor for mortar and shotcrete machines

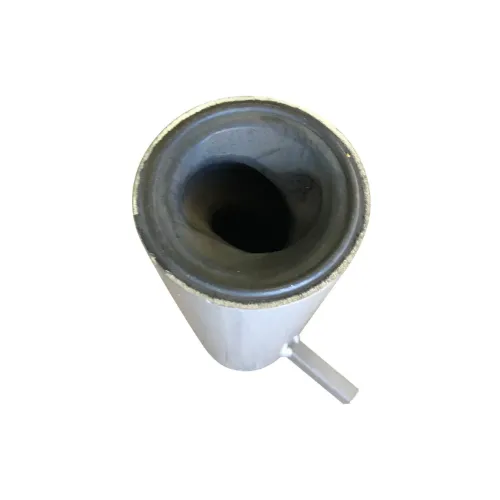

Inside view of D5-2.5 stator liner for shotcrete equipment

Technical information of D5-2.5

. Brand: KTR
. Model: D5-2.5
. Applications: Sprayed mortar / Sprayed plaster
. For machines: Three-phase
. Output: 25 L/min (approx.*)
. Maximum grain size: 3 mm
. Maximum pressure: 40 bar
. Stator diameter: 89 mm
. Stator length: 270 mm
. Stator type: Self-adjusting
. Rotor head type: With slot
. Weight: 6 kg

(*) Approximate output with water at 0 bar pressure.
