HOME / STATORS AND ROTORS / D8-2

D8-2 Stator and rotor

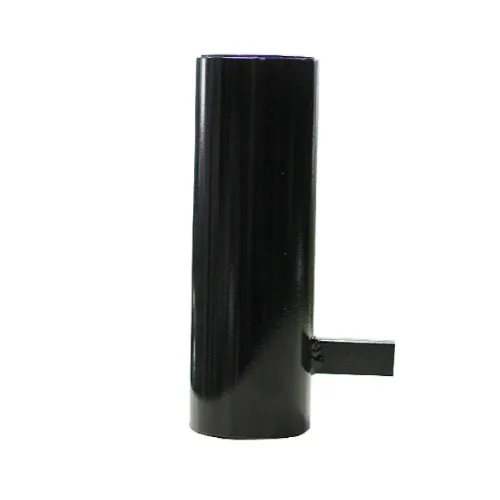

D8-2 stator liner for mortar and shotcrete machines

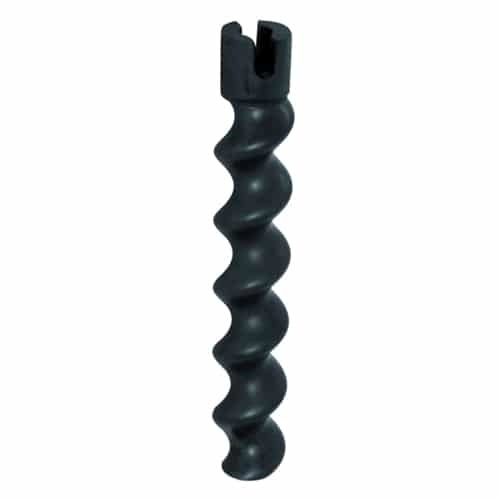

D8-2 rotor for shotcrete and mortar machines

Technical information of D8-2

. Brand: KTR
. Model: D8-2
. Applications: Sprayed mortar / Sprayed plaster
. For machines: Three-phase
. Output: 35 L/min (approx.*)
. Maximum grain size: 5 mm
. Maximum pressure: 35 bar
. Stator diameter: 89 mm
. Stator length: 270 mm
. Stator type: Self-adjusting
. Rotor head type: With slot
. Weight: 6 kg

(*) Approximate output with water at 0 bar pressure.

More information

Contact us for more information

If you need to buy the D8-2 stator and rotor, please contact us using the form below.
We will answer your questions as soon as possible.
