HOME / STATORS AND ROTORS / U45-7

U45-7 Stator and rotor

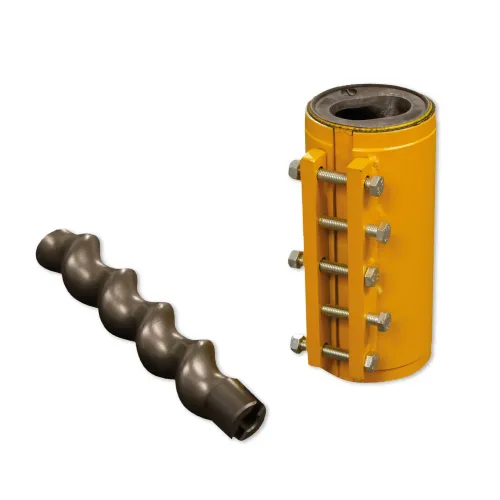

U45-7 stator and rotor set for construction machines

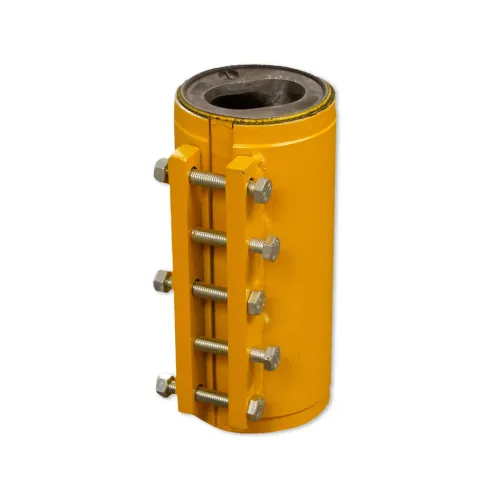

U45-7 stator liner for mortar and shotcrete machines

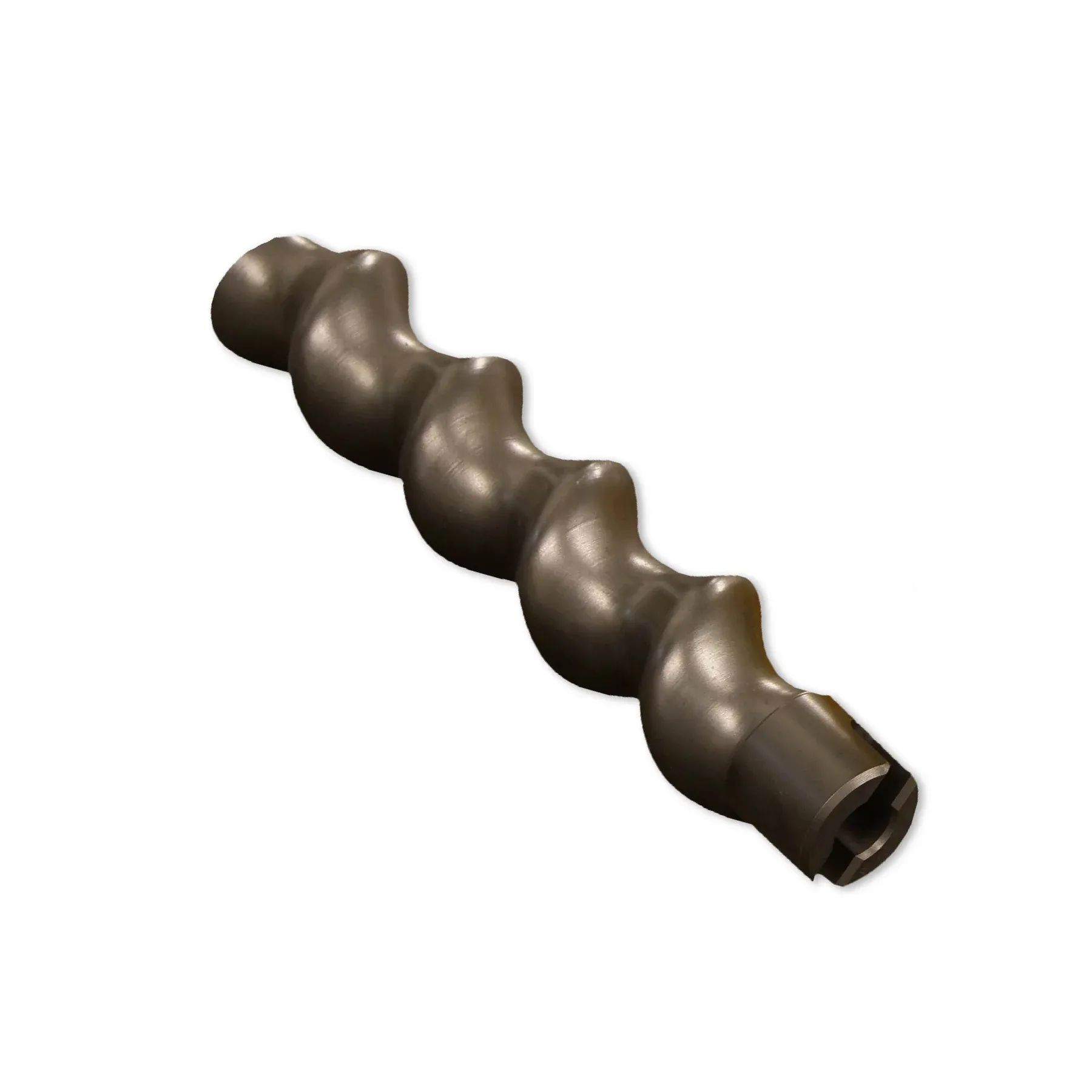

Rotor for U45-7 stator used in shotcrete and mortar machines

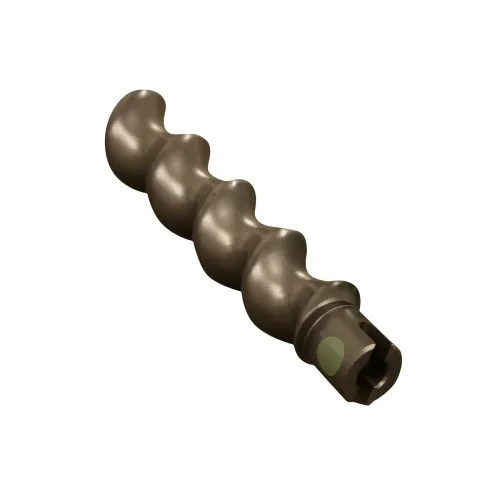

U45-7 rotor for mortar and shotcrete machines

Technical information of U45-7

. Brand: KTR
. Model: U45-7
. Applications: Self-leveling mortar
. For machines: Three-phase
. Output: 70 L/min (approx.*)
. Maximum grain size: 6 mm
. Maximum pressure: 20 bar
. Stator diameter: 125 mm
. Stator length: 270 mm
. Stator type: With integrated clamp
. Rotor head type: With slot
. Weight: 6 kg

(*) Approximate output with water at 0 bar pressure.

More information

Contact us for more information

If you need to buy the U45-7 stator and rotor, please contact us using the form below.
We will answer your questions as soon as possible.
